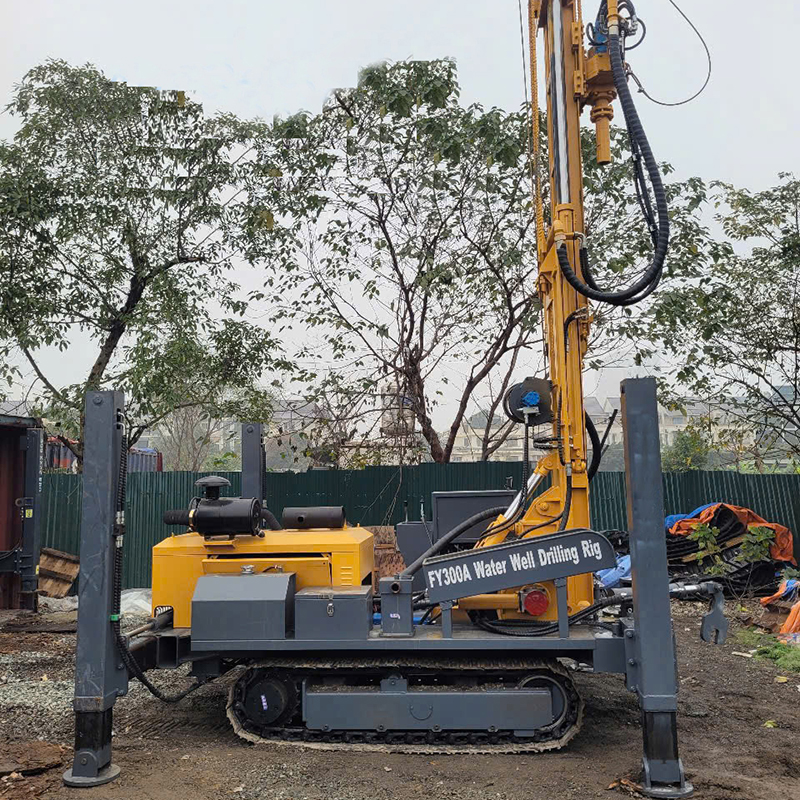

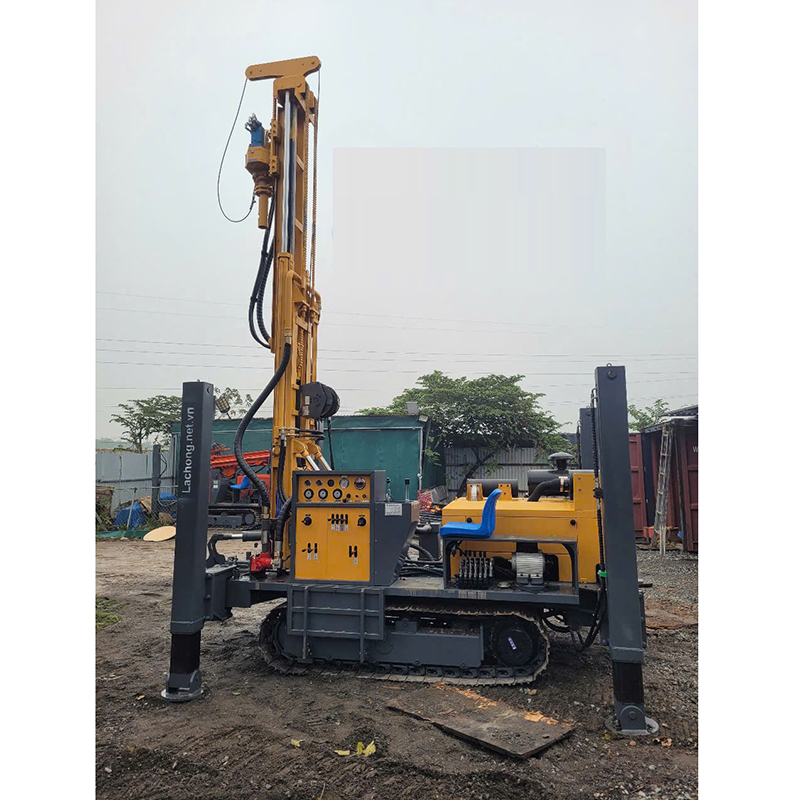

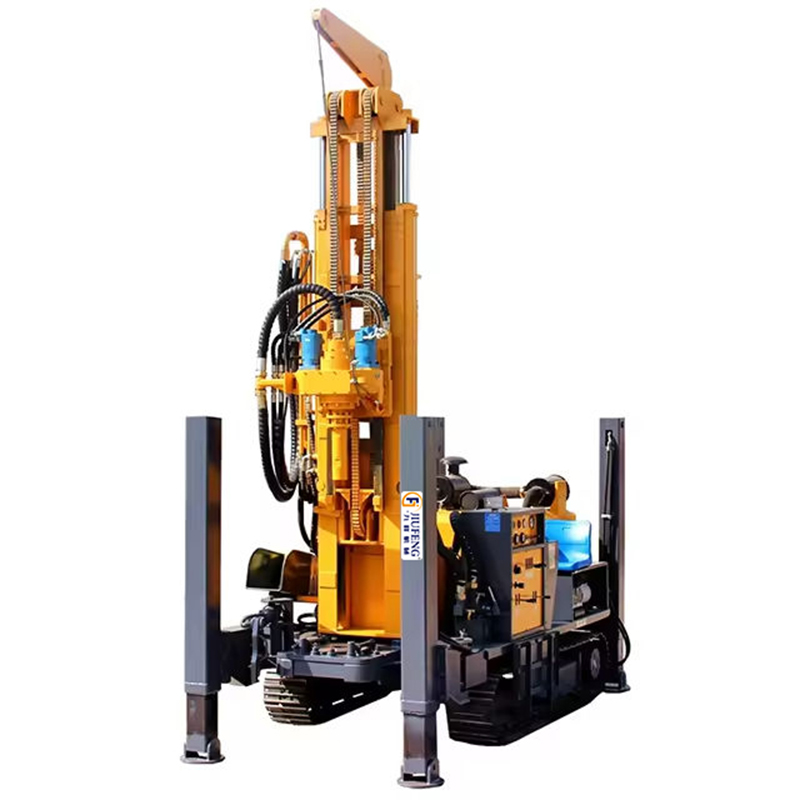

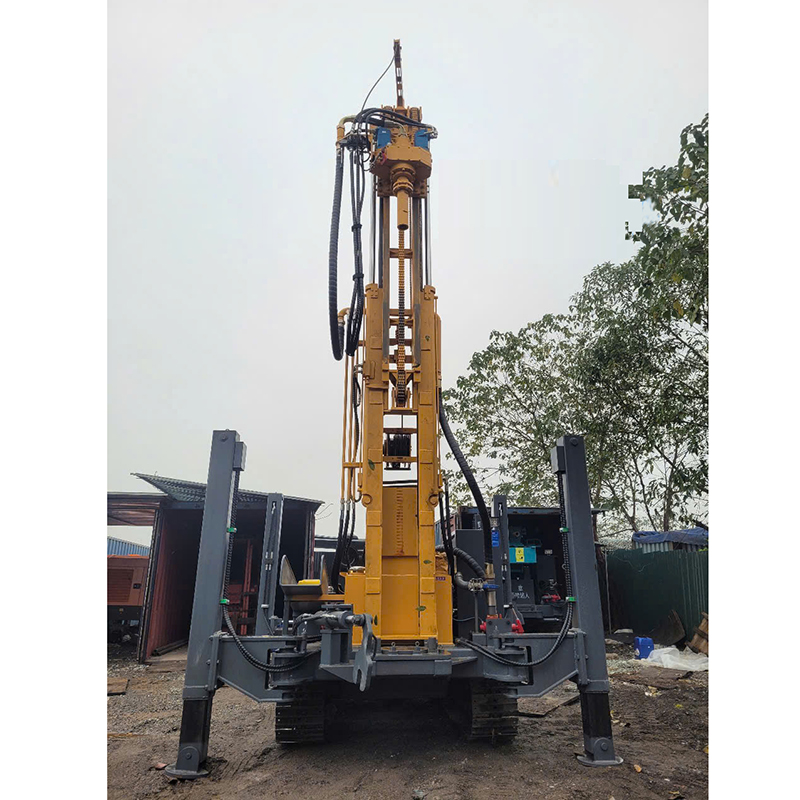

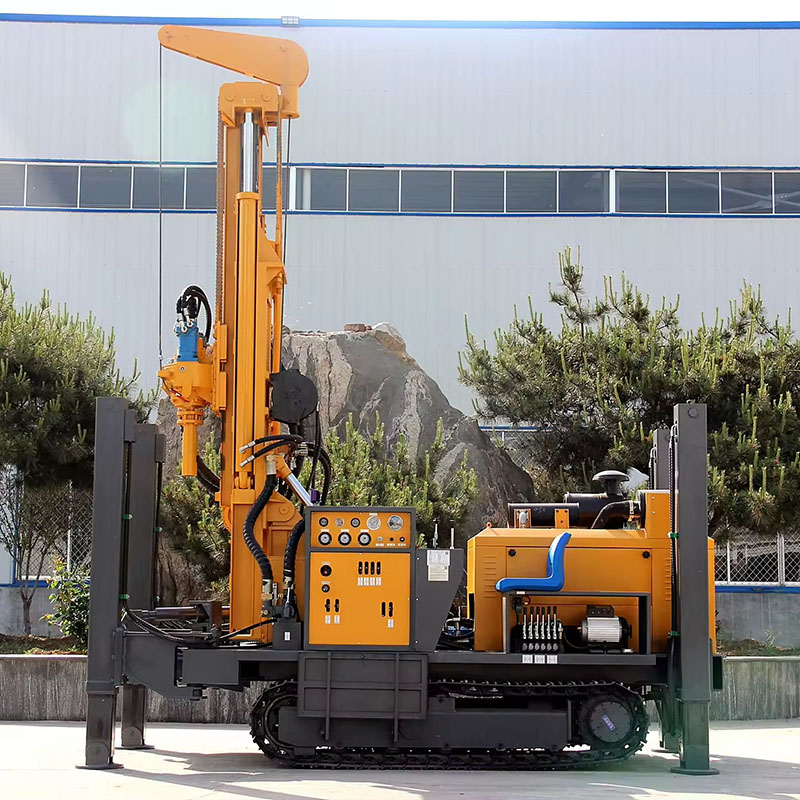

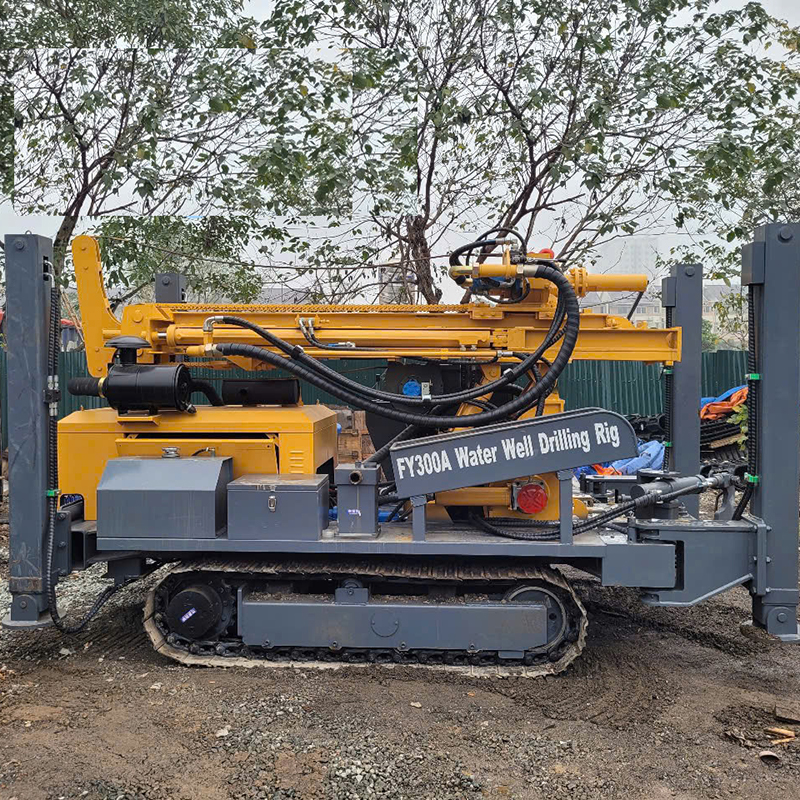

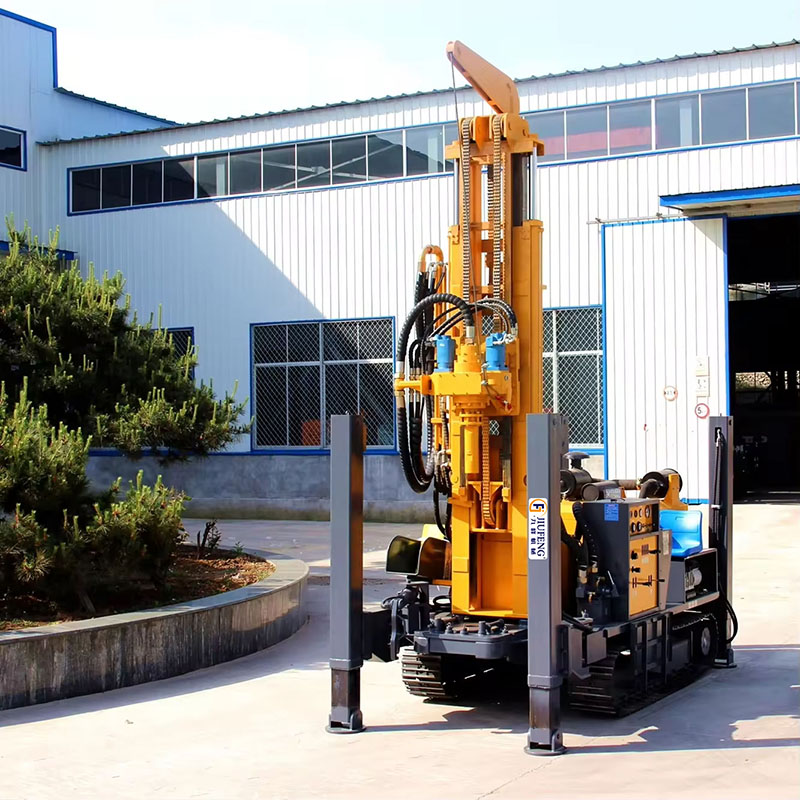

FY 300A crawler water well drilling rig | |||
The weight（T） | 6.8 | Drill pipe diameter（mm） | Φ76 Φ89 |
The hole diameter（mm） | 140-325 | Drill pipe length（m） | 1.5m 2.0m 3.0m |
Drilling depth（m） | 300 | Rig lifting force（T） | 18 |
One-time advance length（m） | 3.3 | Rapid rise speed（m/min） | 22 |
Walking speed（km/h） | 2.5 | Fast feeding speed（m/min） | 40 |
Climbing angles（Max.） | 30 | Width of loading（m） | 2.6 |
Equipped capacitor（kw） | 85 | Hoisting force of winch（T） | 2 |
Using air pressure（MPA） | 1.7-3.0 | Swing torque（N.m） | 5700-7500 |
Air consumption（m³/min） | 17-36 | Dimension（mm） | 4100×2000×2260 |
Swing speed（rpm） | 40-70 | Equipped with hammer | Medium and high wind pressure series |
The penetration efficiency（m/h） | 15-35 | High leg stroke（m） | 1.4 |
The engine brand | Yuchai engine | ||
FY300A Water Well Drilling Rig – Key Features
1. Versatile & Efficient
A high-performance, multi-functional rig suitable for various drilling applications, including water wells, agricultural irrigation wells, and geothermal wells. Especially ideal for mountainous and rocky terrain water projects.
2. Wide Drilling Capacity
Capable of drilling in diverse strata (rock, clay, sand) with a maximum hole diameter of 300mm.
3. Robust Power System
Equipped with a high-torque hydraulic motor power head and a reliable brand diesel engine. The hydraulic control system uses large-diameter cylinders. The diesel engine features a two-stage air filtration system and can also operate using clean air from an air compressor.
4. User-Friendly Design
Unique cam block design and a centralized control system ensure easy operation and simplified maintenance.
5. Flexible Mobility
Built on an excavator crawler chassis for superior off-road performance. Can also be truck-mounted for enhanced mobility.
6. Dual-Speed Operation
Two-gear rotation and feed speeds allow efficient work in both soil and rock layers.
7. Optional Dual Systems
Air drilling system with compressor
Mud circulation system with mud pump
