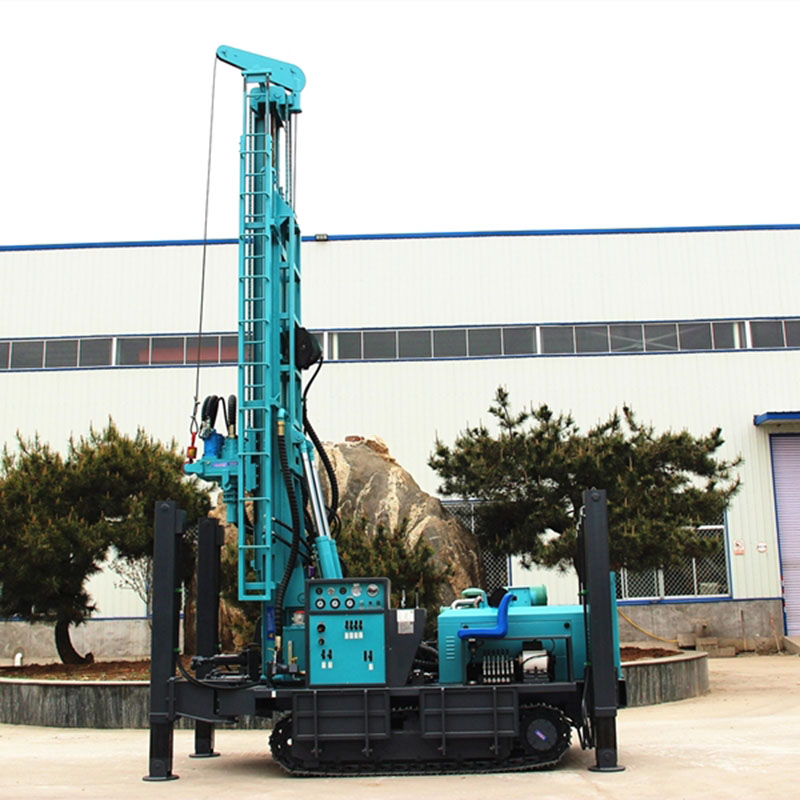

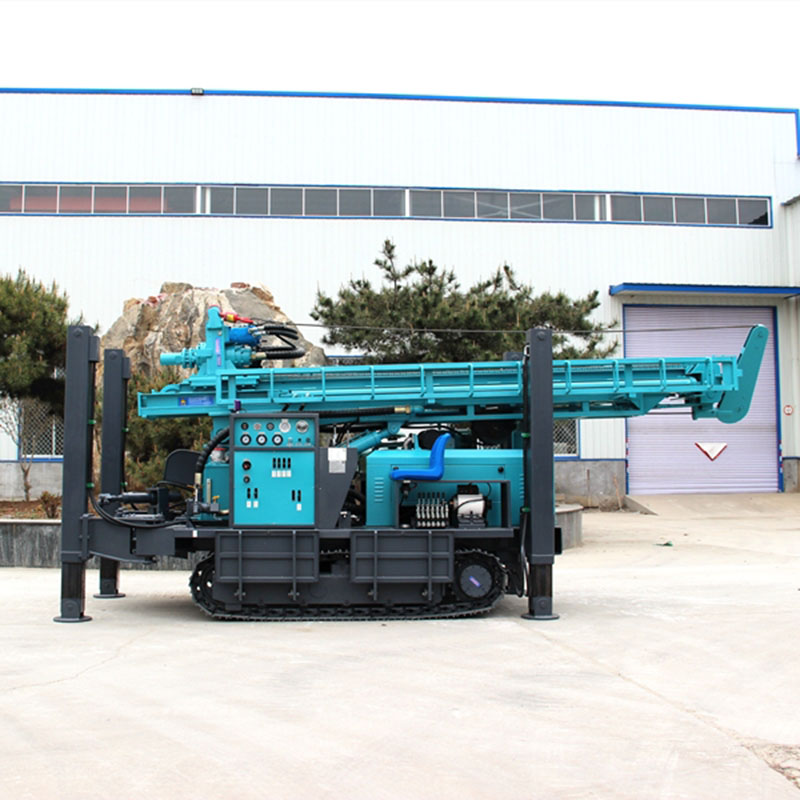

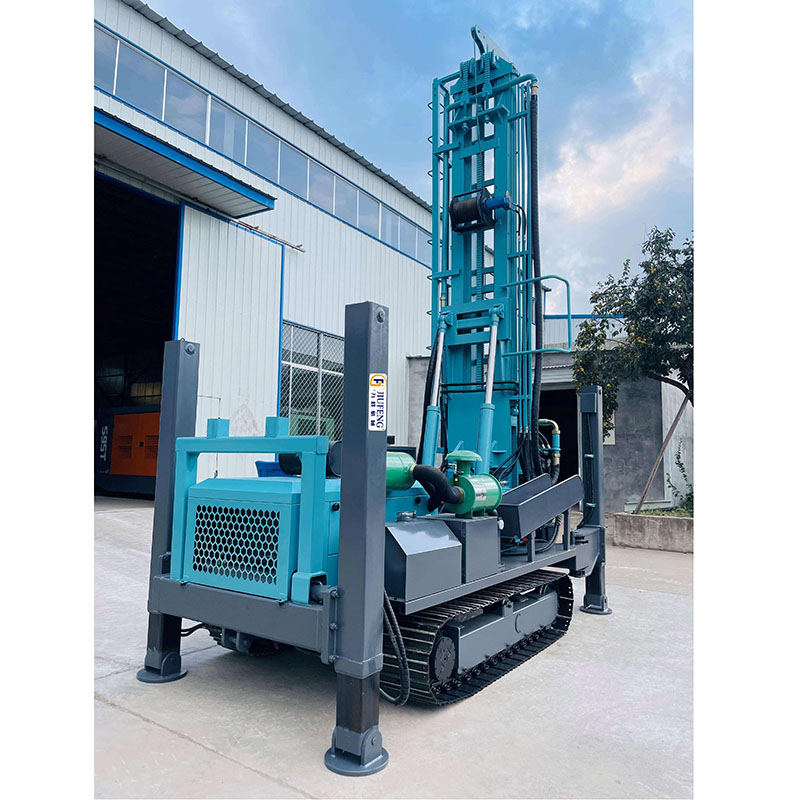

FY 350 crawler water well drilling rig | |||
The weight（T） | 8.6 | Drill pipe diameter（mm） | Φ89 Φ102 |
The hole diameter（mm） | 140-325 | Drill pipe length（m） | 1.5m 2.0m 3.0m 6.0m |
Drilling depth（m） | 350 | Rig lifting force（T） | 22 |
One-time advance length（m） | 6.6 | Rapid rise speed（m/min） | 18 |
Walking speed（km/h） | 2.5 | Fast feeding speed（m/min） | 33 |
Climbing angles（Max.） | 30 | Width of loading（m） | 2.7 |
Equipped capacitor（kw） | 91 | Hoisting force of winch（T） | 2 |
Using air pressure（MPA） | 1.7-3.4 | Swing torque（N.m） | 6200-8500 |
Air consumption（m³/min） | 17-36 | Dimension（mm） | 6000×2000×2550 |
Swing speed（rpm） | 66-135 | Equipped with hammer | Medium and high wind pressure series |
The penetration efficiency（m/h） | 15-35 | High leg stroke（m） | 1.4 |
The engine brand | Yuchai engine | ||
FY350 Water Well Drilling Rig – Key Features
1. Dual-Motor Rotation System
Dual motor-driven rotation delivers high torque and adjustable speed in a compact design.
2. Triple Gear Pump
Equipped with a triple gear pump for enhanced durability and reliable performance.
3. Integrated Operator Platform
Features a combined platform with foot pedals for improved aesthetics and ease of operation.
4. High-Altitude & Cold Climate Adaptation
Comes with a clutch and auxiliary radiator, suitable for high-altitude and cold-region operations.
5. German-Technology Travel Motor
Incorporates travel motors with German technology, providing high torque, strong climbing capability, and low failure rate.
6. Optional Dual Systems
Air drilling system with air compressor
Mud circulation system with mud pump
