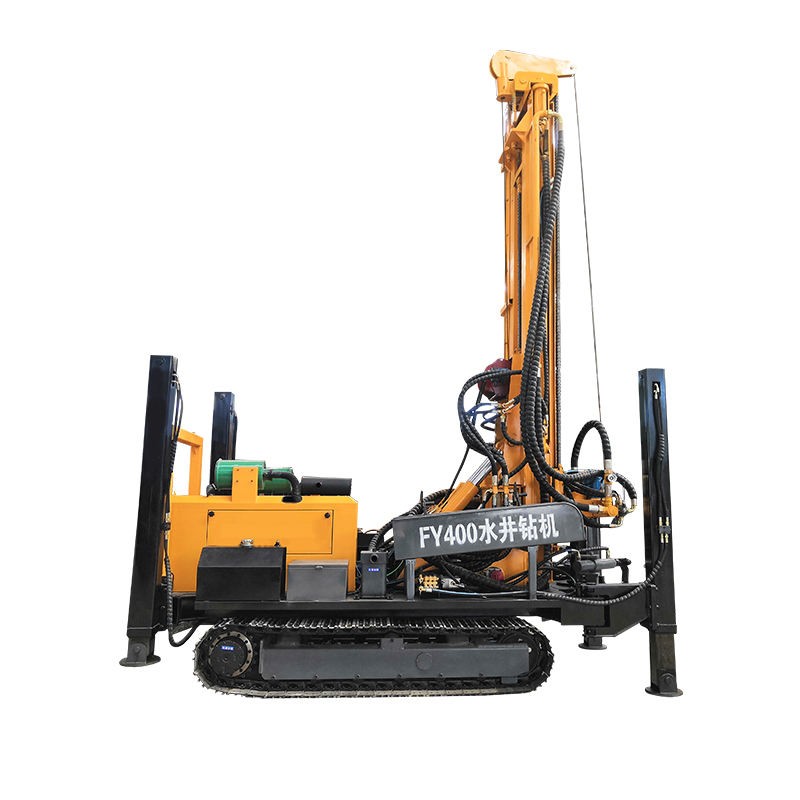

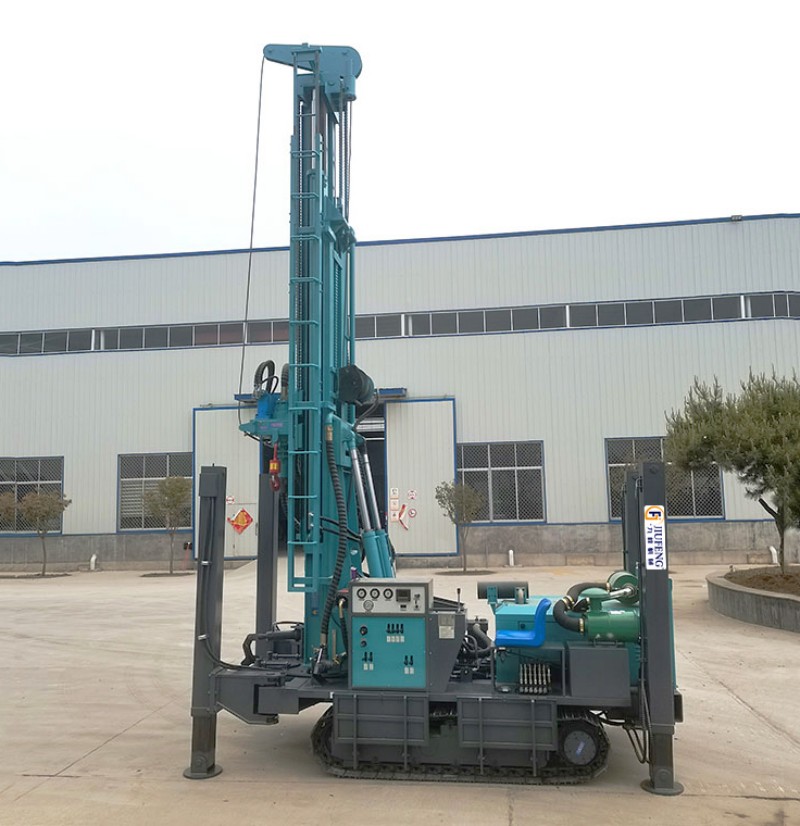

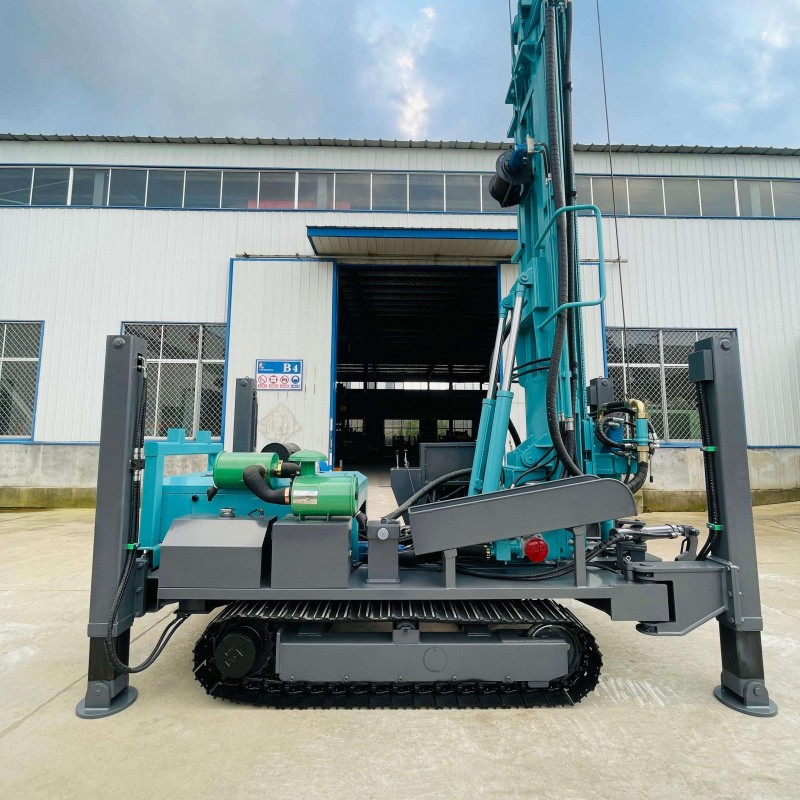

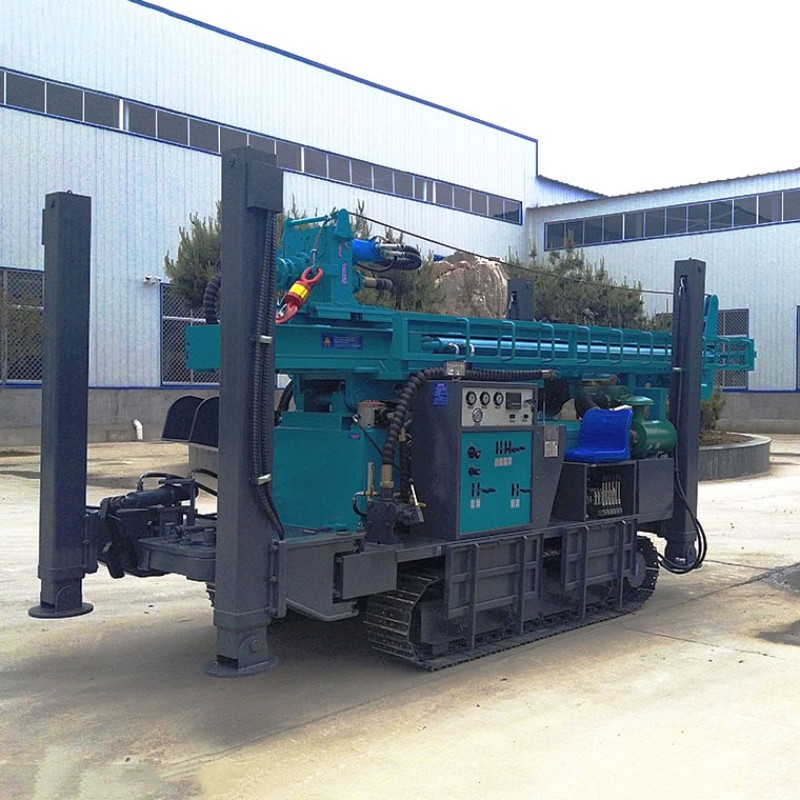

FY 400 crawler water well drilling rig | |||
The weight（T） | 9.2 | Drill pipe diameter（mm） | Φ89 Φ102 |
The hole diameter（mm） | 140-325 | Drill pipe length（m） | 1.5m 2.0m 3.0m 6.0m |
Drilling depth（m） | 400 | Rig lifting force（T） | 24 |
One-time advance length（m） | 6.6 | Rapid rise speed（m/min） | 18 |
Walking speed（km/h） | 2.5 | Fast feeding speed（m/min） | 33 |
Climbing angles（Max.） | 30 | Width of loading（m） | 2.7 |
Equipped capacitor（kw） | 92 | Hoisting force of winch（T） | 2 |
Using air pressure（MPA） | 1.7-3.4 | Swing torque（N.m） | 6500-9000 |
Air consumption（m³/min） | 17-36 | Dimension（mm） | 6000×2000×2550 |
Swing speed（rpm） | 66-135 | Equipped with hammer | Medium and high wind pressure series |
The penetration efficiency（m/h） | 15-35 | High leg stroke（m） | 1.4 |
The engine brand | Yuchai engine ( National III ) | ||
FY400 Water Well Drilling Rig – Key Features
1. Versatile & High-Efficiency Drilling
A multi-functional drilling rig suitable for various applications including water wells, agricultural irrigation wells, and geothermal wells. Especially effective for water extraction projects in mountainous and rocky terrains.
2. Wide Drilling Compatibility
Capable of drilling in multiple formations (rock, clay, sand) with a maximum borehole diameter of 300 mm.
3. Powerful & Reliable Drive System
Equipped with a high-torque hydraulic motor power head and a branded diesel engine. The hydraulic control system utilizes large-diameter cylinders. The diesel engine features a two-stage air filtration system and can also operate using clean air from an air compressor.
4. User-Friendly Operation & Maintenance
Features a unique cam block design and a centralized control system for easy operation and simplified maintenance.
5. Highly Mobile Chassis
Built on an excavator crawler chassis for excellent off-road performance. Can also be mounted on a truck for greater mobility.
6. Dual-Speed Drilling Modes
Two-gear rotation and feed speeds enable efficient operation in both soil and rock layers.
7. Optional Dual Systems
Air drilling system with air compressor
Mud circulation system with mud pump
