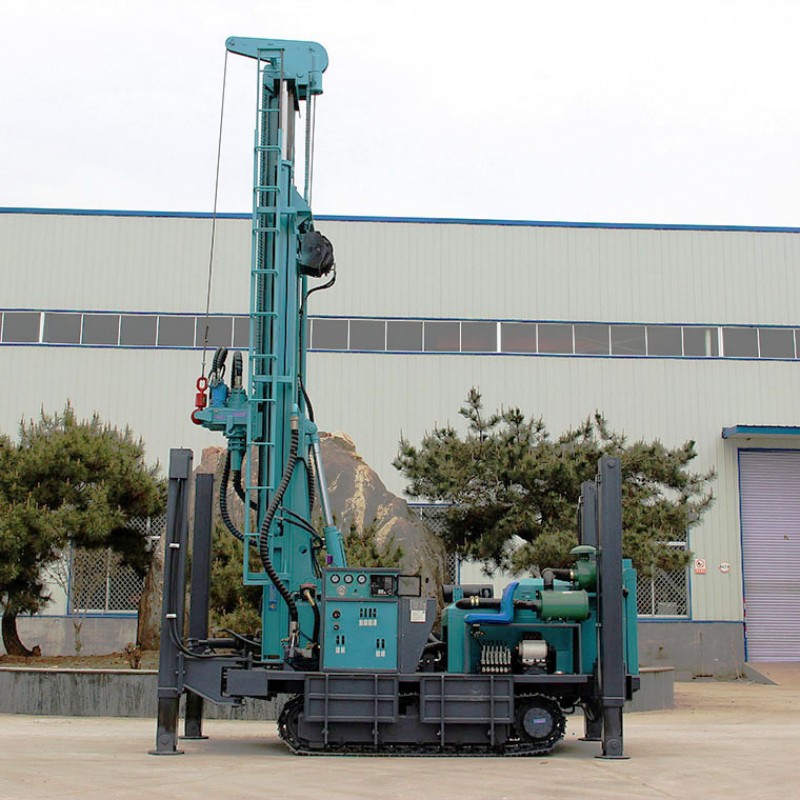

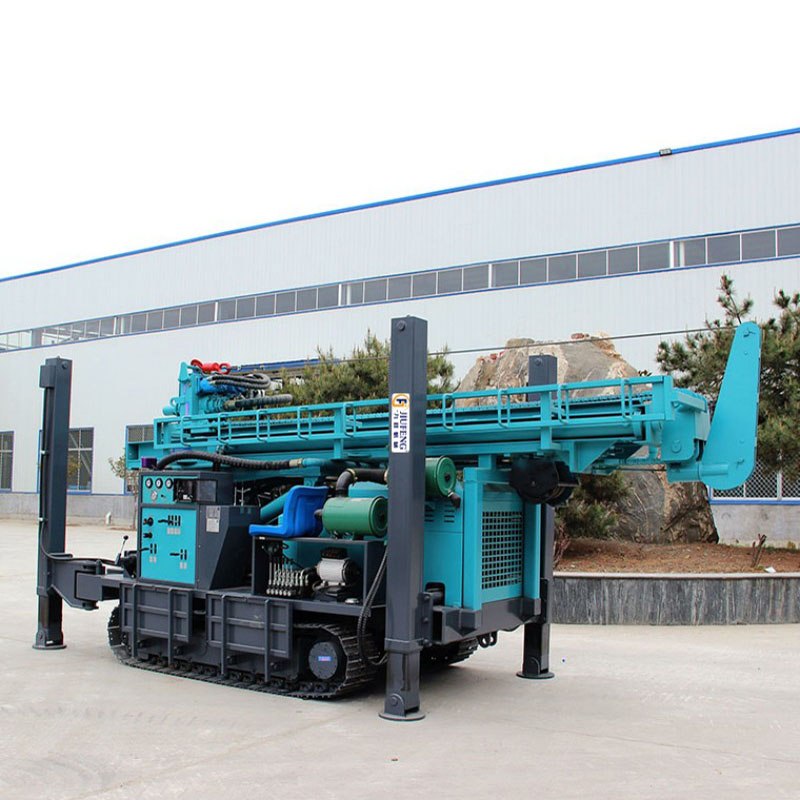

FY 450 crawler water well drilling rig | |||
The weight（T） | 9.2 | Drill pipe diameter（mm） | Φ89 Φ102 |
The hole diameter（mm） | 140-350 | Drill pipe length（m） | 1.5m 2.0m 3.0m 6.0m |
Drilling depth（m） | 450 | Rig lifting force（T） | 25 |
One-time advance length（m） | 6.6 | Rapid rise speed（m/min） | 20 |
Walking speed（km/h） | 2.5 | Fast feeding speed（m/min） | 40 |
Climbing angles（Max.） | 30 | Width of loading（m） | 2.8 |
Equipped capacitor（kw） | 110 | Hoisting force of winch（T） | 2 |
Using air pressure（MPA） | 1.7-3.5 | Swing torque（N.m） | 7000-9500 |
Air consumption（m³/min） | 17-36 | Dimension（mm） | 6150*2200*2600 |
Swing speed（rpm） | 30-135 | Equipped with hammer | Medium and high wind pressure series |
The penetration efficiency（m/h） | 15-35 | High leg stroke（m） | 1.6 |
The engine brand | Yuchai engine | ||
FY450 Water Well Drilling Rig - Key Features
1, Versatile & High-Efficiency Drilling
A multi-functional drilling rig suitable for water wells, irrigation wells, geothermal wells, and more. Particularly effective for water extraction in mountainous and rocky terrains.
2. Wide Drilling Capacity
Capable of drilling in various formations (rock, clay, sand) with a maximum borehole diameter of 450 mm.
3. Robust Power System
Equipped with a high-torque hydraulic motor power head and a reliable branded diesel engine. Features large-diameter hydraulic cylinders and a two-stage air filtration system; can also operate using clean air from a compressor.
4. User-Friendly Operation
Unique cam design with a centralized control system ensures easy operation and maintenance.
5. Enhanced Mobility
Built on an excavator crawler chassis for excellent off-road performance. Can be truck-mounted for greater flexibility.
6. Dual-Speed Drilling
Two-gear rotation and feed speeds provide efficient performance in both soil and rock layers.
7. Advanced Dual-Cooling System
Independent cooling system combines hydraulic oil temperature cooling with traditional air cooling, effectively extending engine life.
8. Optional Systems
Air drilling system with compressor
Mud circulation system with mud pump
