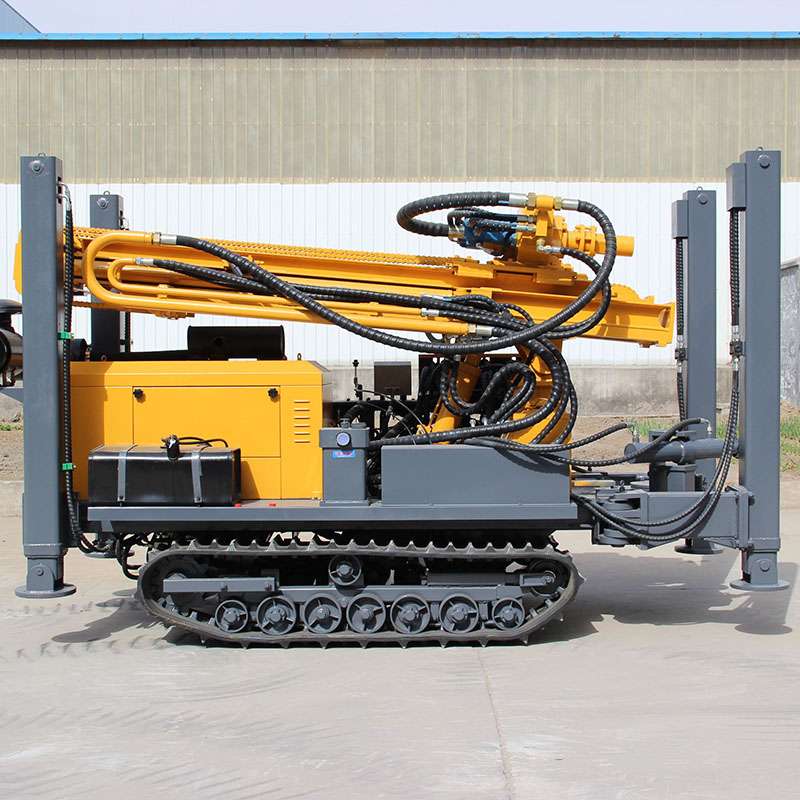

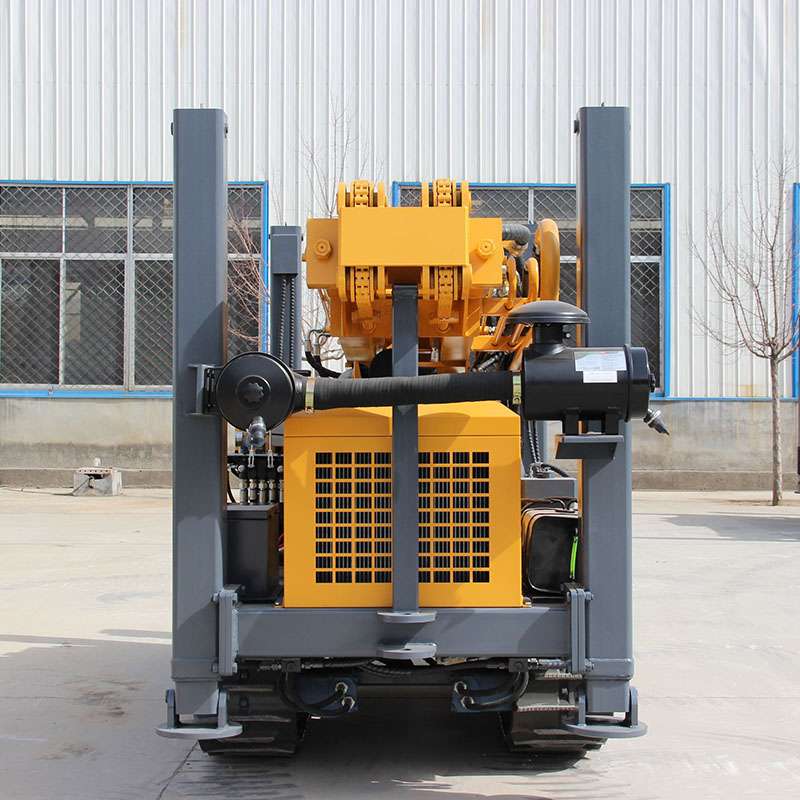

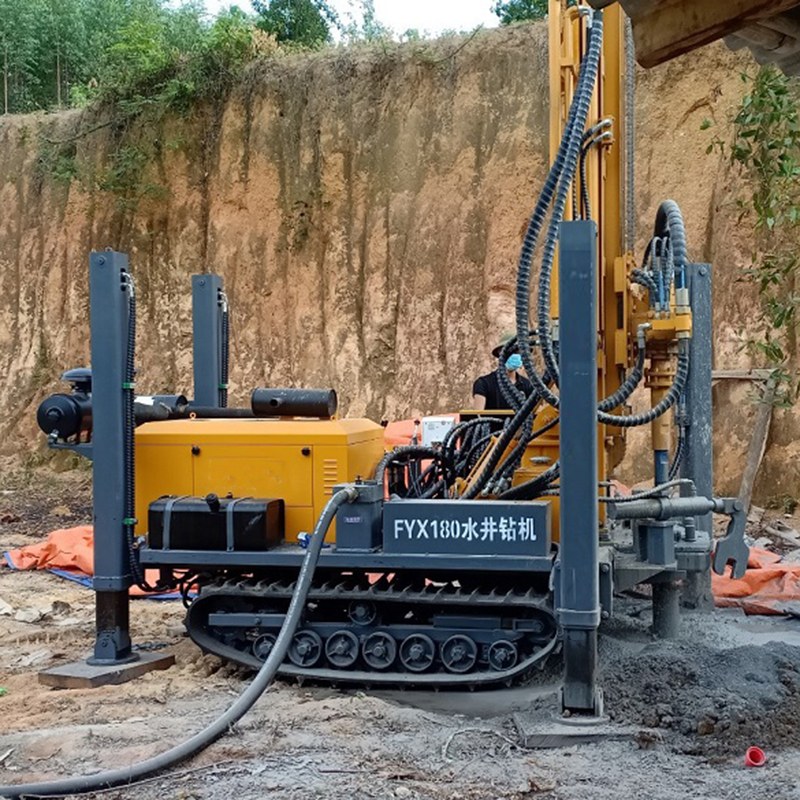

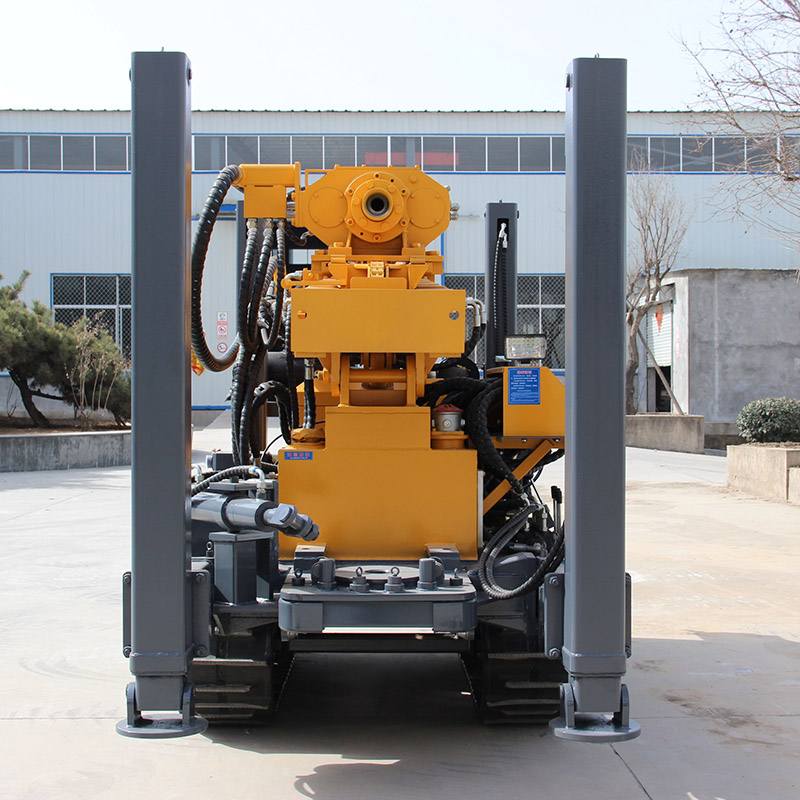

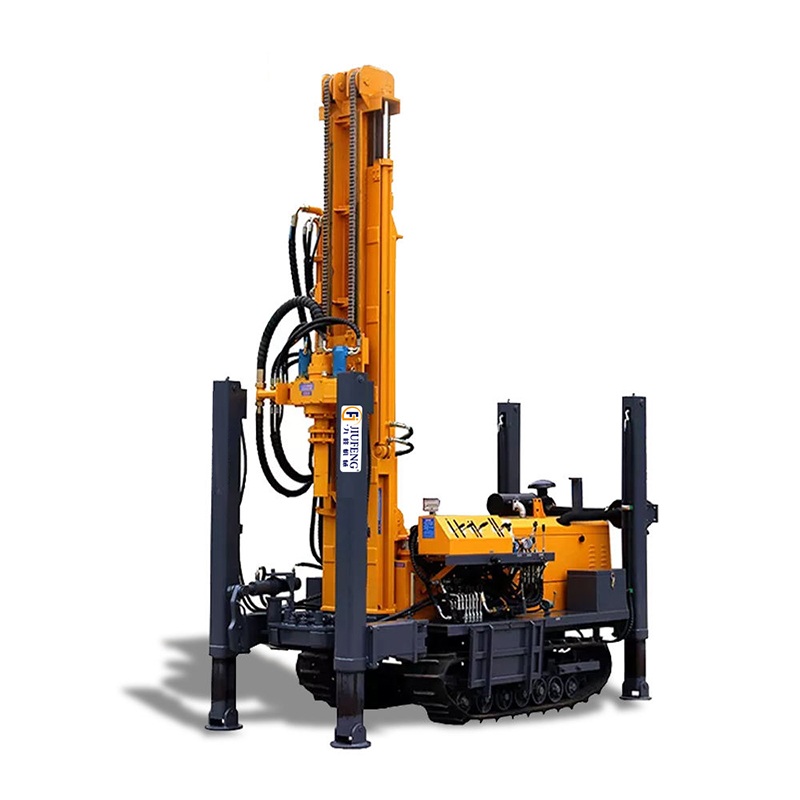

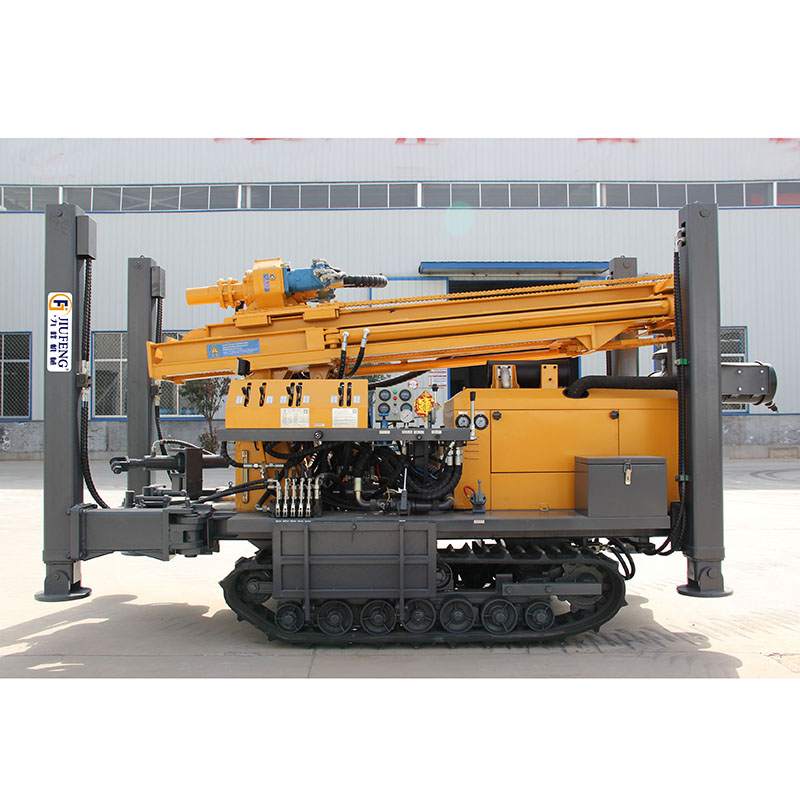

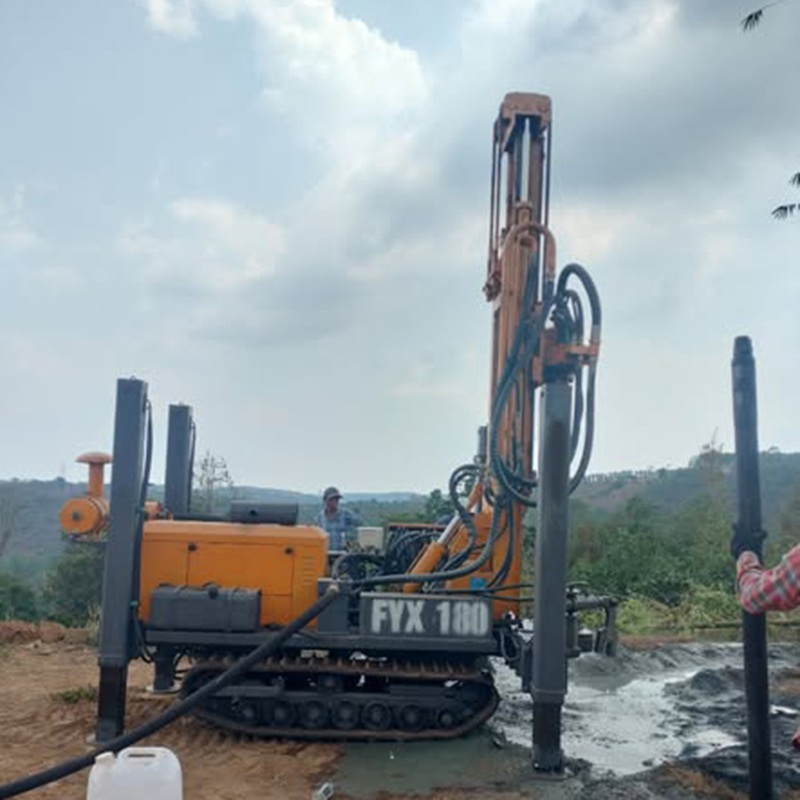

FY 180 Steel crawler water well drilling rig | |||
The weight（T） | 5.2 | Drill pipe diameter（mm） | Φ76 Φ89 |
The hole diameter（mm） | 140-254 | Drill pipe length（m） | 1.5m 2.0m 3.0m |
Drilling depth（m） | 180 | Rig lifting force（T） | 12 |
One-time advance length（m） | 3.3 | Rapid rise speed（m/min） | 20 |
Walking speed（km/h） | 2.5 | Fast feeding speed（m/min） | 40 |
Climbing angles（Max.） | 30 | Width of loading（m） | 2.4 |
Equipped capacitor（kw） | 60 | Hoisting force of winch（T） | ---- |
Using air pressure（MPA） | 1.7-2.5 | Swing torque（N.m） | 3200-4600 |
Air consumption（m³/min） | 17-31 | Dimension（mm） | 4000×1630×2250 |
Swing speed（rpm） | 45-70 | Equipped with hammer | Medium and high wind pressure series |
The penetration efficiency（m/h） | 10-35 | High leg stroke（m） | 1.4 |
The engine brand | Yuchai engine | ||
FY180 Water Well Drilling Rig Features:
1. Engine: Turbocharged engine from renowned brand Guangxi Yuchai.
2. Travel System: Equipped with advanced travel motors and reducers for extended service life.
3. Hydraulic Pump: U.S. imported, with parallel gearbox design and separable pump layout, ensuring sufficient and rational power distribution. The innovative hydraulic system is easy to maintain and cost-effective.
4. Power Head: Integrated one-piece structure with dual motors, delivering greater power, higher torque, enhanced durability, and lower maintenance costs.
5. Chassis: Built on specialized excavator chassis for time-tested durability, high load capacity, and wide track plates that minimize damage to hard surfaces.
6. Lifting Capacity: Compact compound boom with long stroke and dual hydraulic cylinders provides substantial lifting force. The boom features a limit device to protect cylinders and ensure operational safety.
7.Hydraulic Lines: All hoses are covered with thickened protective sleeves for extended service life.
8. Optional Dual Systems:
Air power system with air compressor
Mud pump system with mud pump
