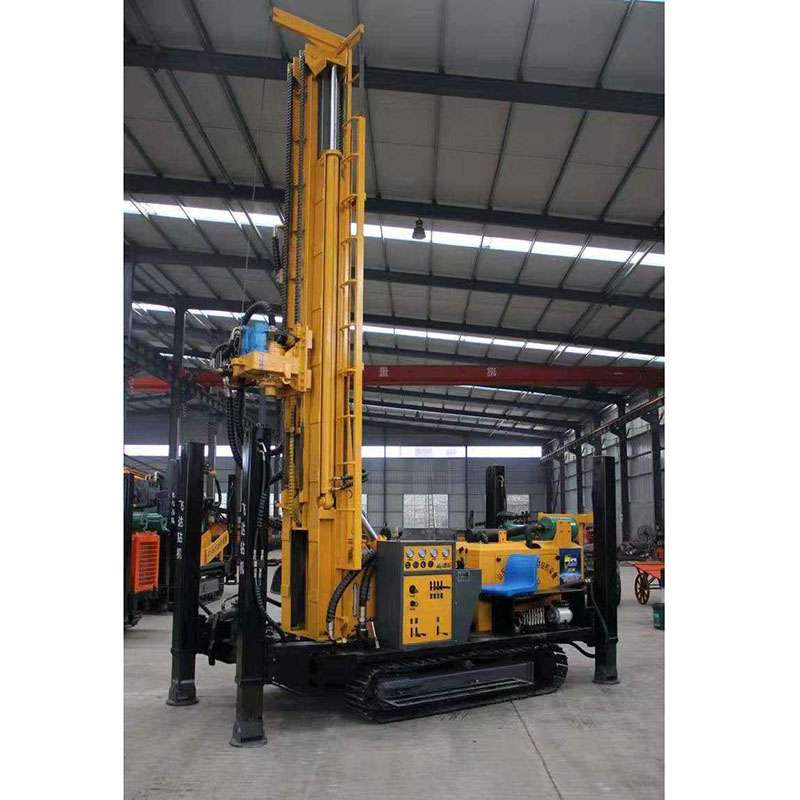

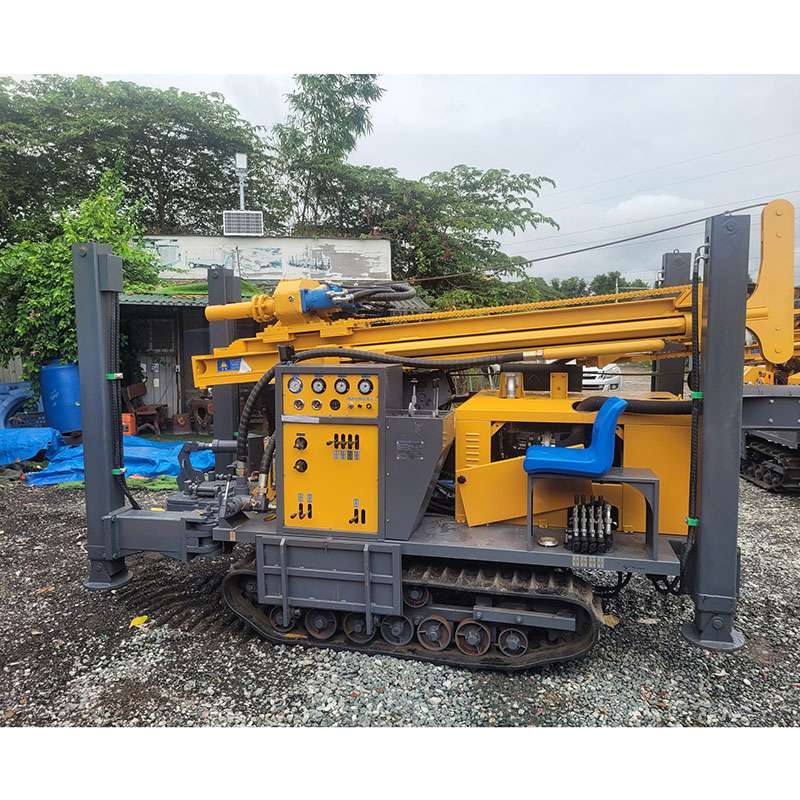

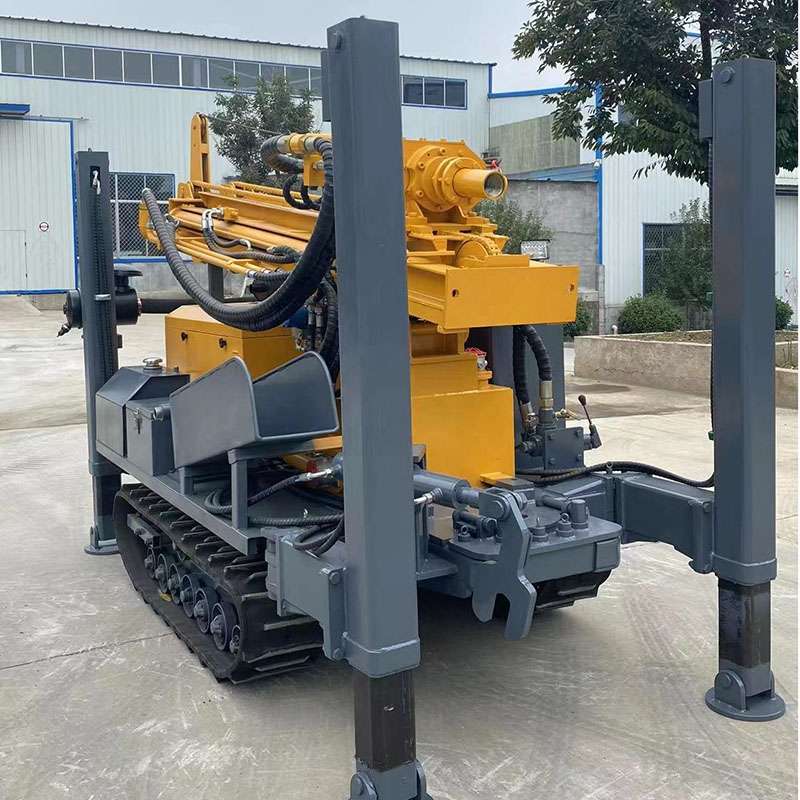

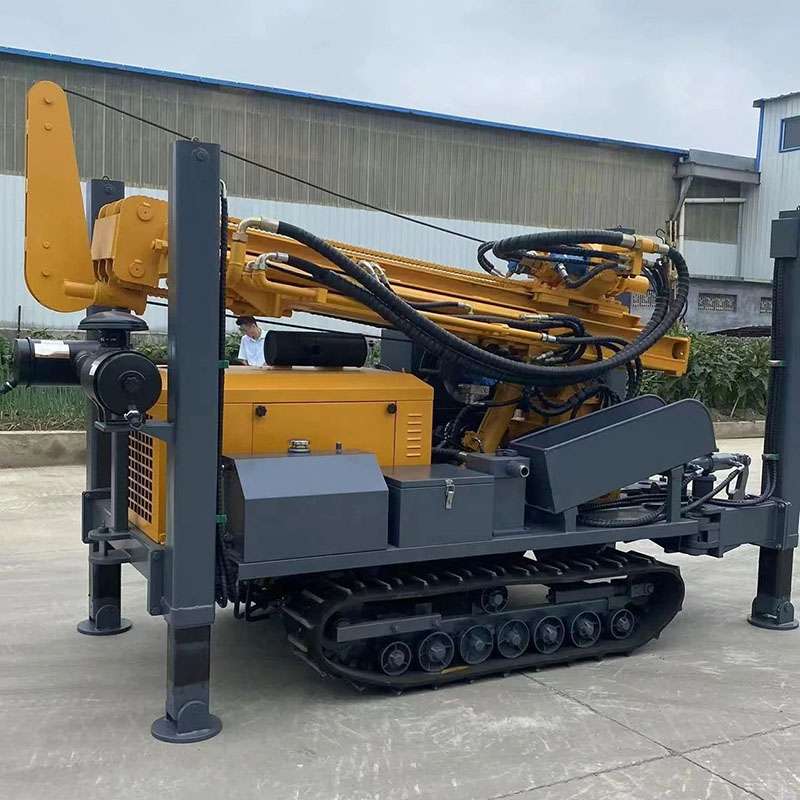

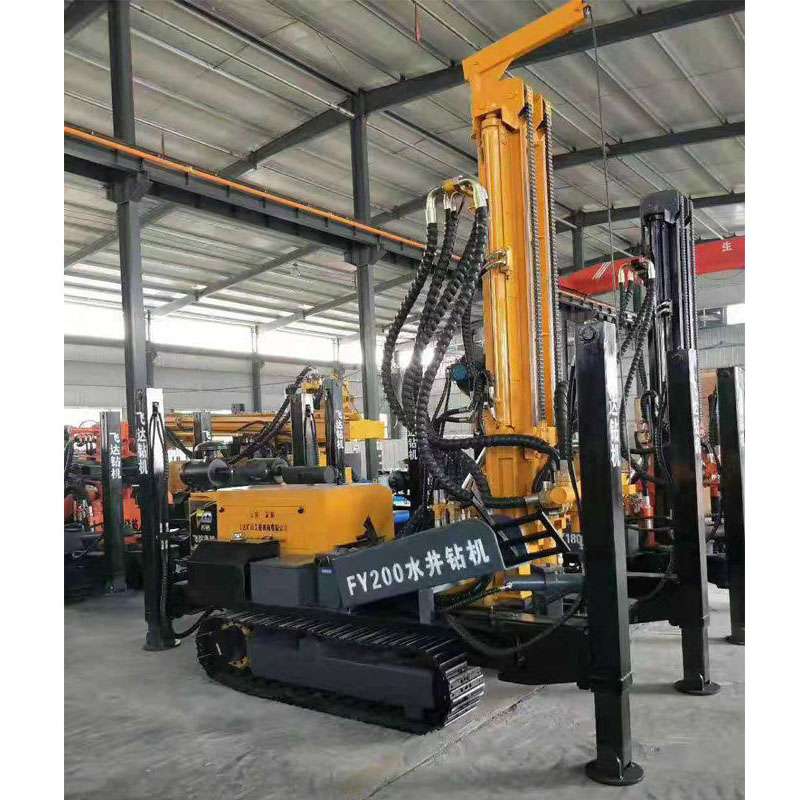

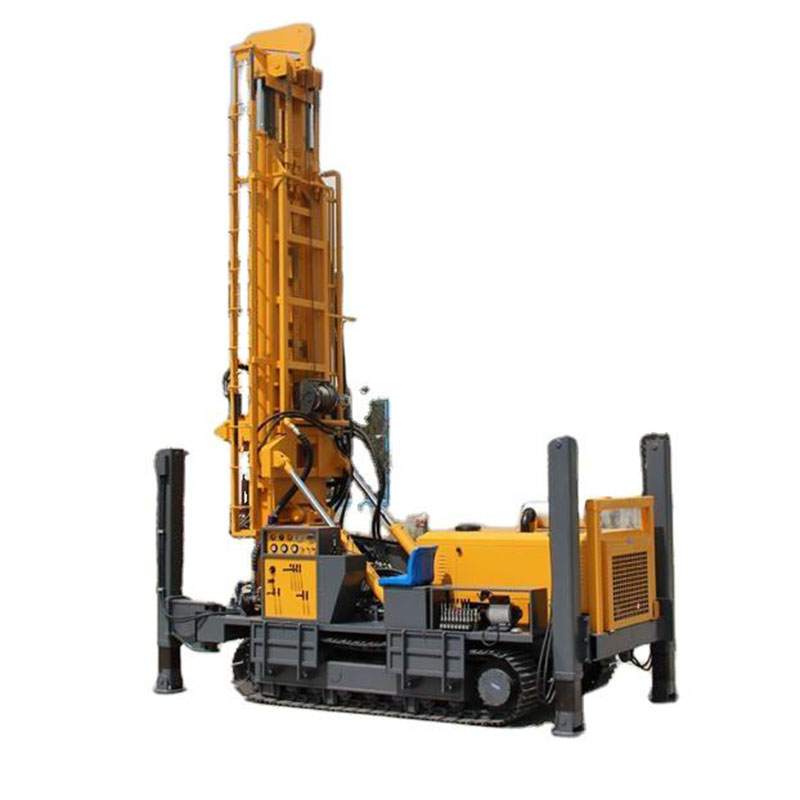

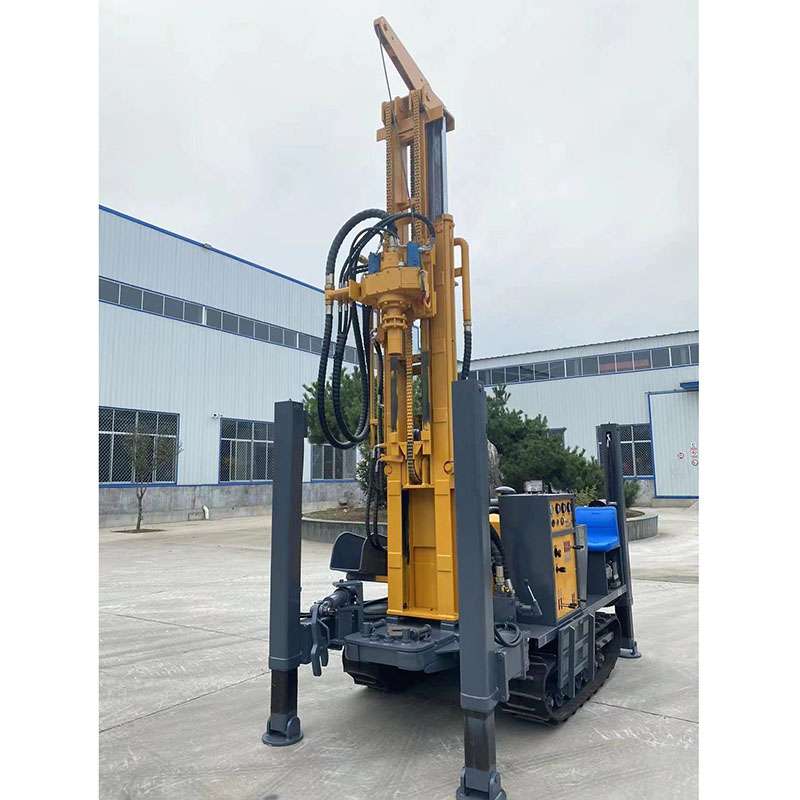

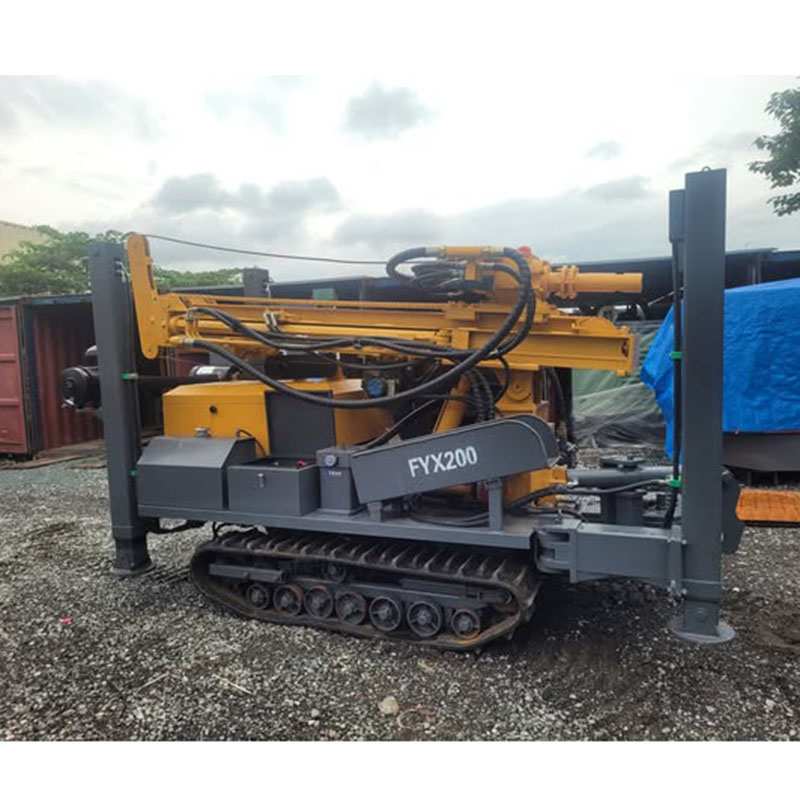

FYX 200 Crawler water well drilling rig | |||
The weight（T） | 4.7 | Drill pipe diameter（mm） | Φ76 Φ89 |
The hole diameter（mm） | 140-254 | Drill pipe length（m） | 1.5m 2.0m 3.0m |
Drilling depth（m） | 200 | Rig lifting force（T） | 13 |
One-time advance length（m） | 3.3 | Rapid rise speed（m/min） | 30 |
Walking speed（km/h） | 2.5 | Fast feeding speed（m/min） | 60 |
Climbing angles（Max.） | 30 | Width of loading（m） | 2.6 |
Equipped capacitor（kw） | 58 | Hoisting force of winch（T） | 1.5 |
Using air pressure（MPA） | 1.7-2.5 | Swing torque（N.m） | 3400-4700 |
Air consumption（m³/min） | 17-31 | Dimension（mm） | 3950×1750×2250 |
Swing speed（rpm） | 45-70 | Equipped with hammer | Medium and high wind pressure series |
The penetration efficiency（m/h） | 10-35 | High leg stroke（m） | 1.4 |
The engine brand | Yuchai engine | ||
FYX200 Water Well Drilling Rig – Key Features
1. Powerful Engine
Equipped with a 58kW Yuchai turbocharged engine for strong and reliable performance.
2. Patented Boom Design
Features a patented compound boom with dual hydraulic cylinders for efficient lifting.
3. Cylinder Protection
Protective baffle installed on the main boom to safeguard hydraulic cylinders.
4. Durable Crawler Chassis
Built on a professional excavator chassis with wide rubber tracks, offering high load capacity, durability, and minimal damage to hard surfaces.
5. Efficient Hydraulic System
Parallel transmission design with independent oil pump ensures ample power and rational distribution. The system is easy to maintain and cost-effective.
6. Optional Dual Systems
Air drilling system with air compressor
Mud circulation system with mud pump
