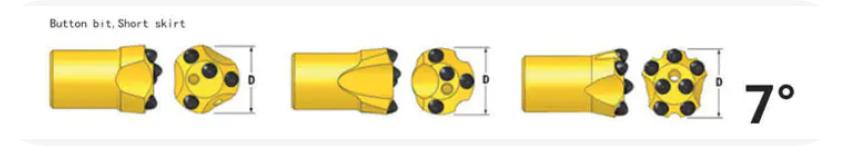

Diameter | For class of rock | Tap size(mm) | Taper | Weight(kg) | P/N | |
mm | inch | Height^Width | ||||
38 | 1 1/2 | 8-12 | 13.5X8 | 7 ° | 0.33 | C38-1-1 |
38 | 1 1/2 | 10-14 | 13.5X8 | 7 ° | 0.33 | C38-1-2 |
38 | 1 1/2 | 8-12 | 15X9 | 7 ° | 0.33 | C38-2-1 |
38 | 1 1/2 | 10-14 | 15X9 | 7 ° | 0.33 | C38-2-2 |
40 | 1 37/64 | 8-12 | 13.5X9.2 | 7 ° | 0.38 | C40-1-1 |
40 | 1 37/64 | 10-14 | 13.5X9.2 | 7 ° | 0.38 | C40-1-2 |
40 | 1 37/64 | 14-16 | 13.5X9.2 | 7 ° | 0.38 | C40-1-3 |
40 | 1 37/64 | 16-18 | 13.5X9.2 | 7 ° | 0.38 | C40-1-4 |
40 | 1 37/64 | 8-12 | 15X9.8 | 7 ° | 0.38 | C40-2-1 |
40 | 1 37/64 | 10-14 | 15X9.8 | 7 ° | 0.38 | C40-2-2 |
40 | 1 37/64 | 14-16 | 15X9.8 | 7 ° | 0.38 | C40-2-3 |
40 | 1 37/64 | 16-18 | 15X9.8 | 7 ° | 0.38 | C40-2-4 |
42 | 1 2/3 | 8-12 | 13.5X9.2 | 7 ° | 0.41 | C42-1-1 |
42 | 1 21/32 | 10-14 | 13.5X9.2 | 7 ° | 0.41 | C42-1-2 |
42 | 1 21/32 | 14-16 | 13.5X9.2 | 7 ° | 0.41 | C42-1-3 |
42 | 1 21/32 | 16-18 | 13.5X9.2 | 7 ° | 0.41 | C42-1-4 |
42 | 1 21/32 | 8-12 | 15X9.8 | 7 ° | 0.41 | C42-2-1 |
42 | 1 21/32 | 10-14 | 15X9.8 | 7 ° | 0.41 | C42-2-2 |
42 | 1 21/32 | 10-14 | 15X9.8 | 7 ° | 0.41 | C42-2-3 |
42 | 1 21/32 | 16-18 | 15X9.8 | 7 ° | 0.41 | C42-2-4 |
43 | 1 11/16 | 8-12 | 13.5X9.2 | 7 ° | 0.42 | C43-1-1 |
43 | 1 11/16 | 10-14 | 13.5X9.2 | 7 ° | 0.42 | C43-1-2 |
43 | 1 11/16 | 8-12 | 15X9.8 | 7 ° | 0.42 | C43-2-1 |
43 | 1 11/16 | 10-14 | 15X9.8 | 7 ° | 0.42 | C43-2-2 |
